Standard & A.S.M.E.® Tank Heads For Industry

Baker Tank Head manufactures semi-elliptical tank heads, ASME flanged and dished tank heads,  ASME 10-10 flanged and dished tank heads, ASME high crown flanged and dished tank heads, flanged and conical dished tank heads, standard flanged and dished tank heads,  flanges and shallow dished tank heads,  flanged only tank heads,  dished only tank heads,  flared and dished tank heads.

We manufacture tank heads in many different configurations from 4″ to 275″ in diameter.

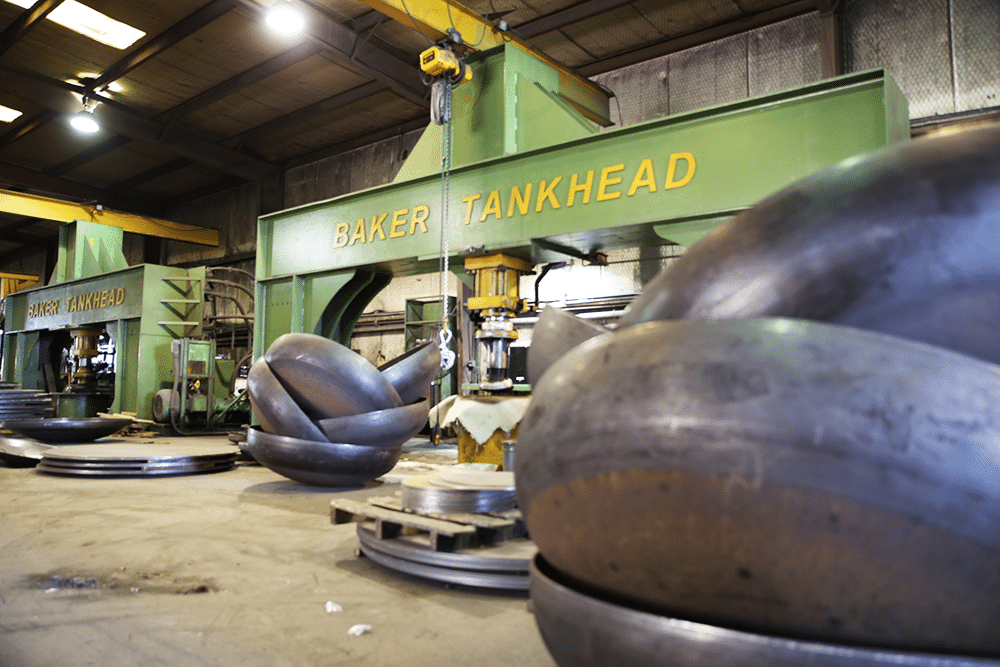

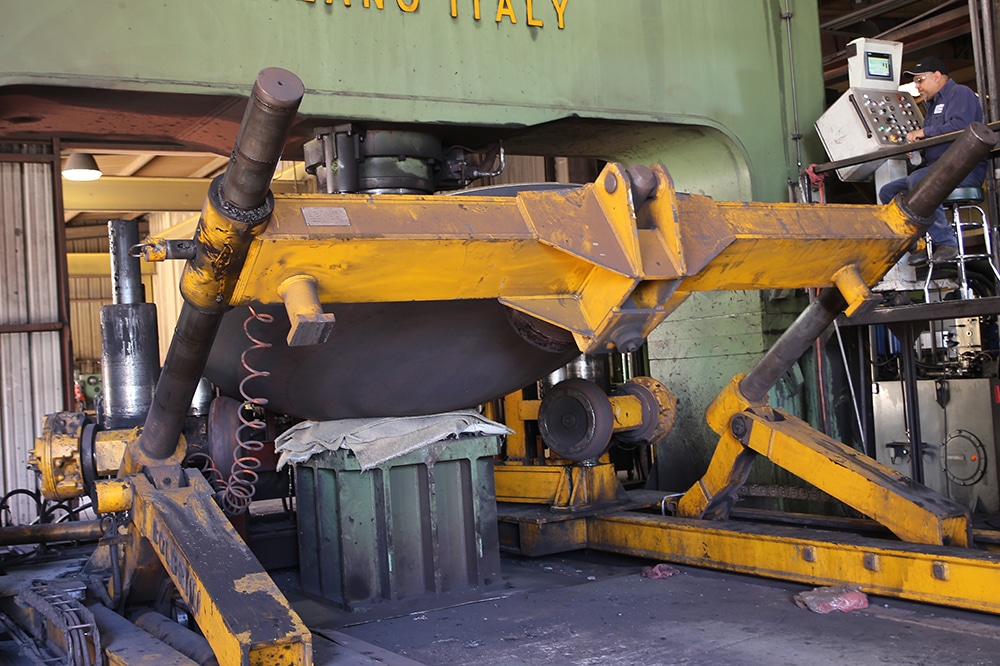

We form carbon, stainless, aluminum, and many other exotic materials using the finest head making equipment available today.

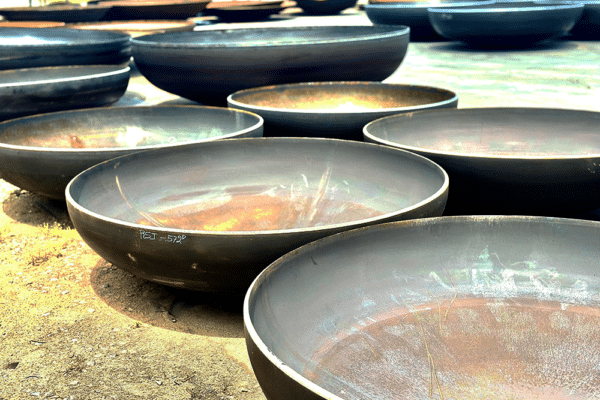

Standard & A.S.M.E.® Tank Heads For Industry in Manufacture | Baker Tankhead

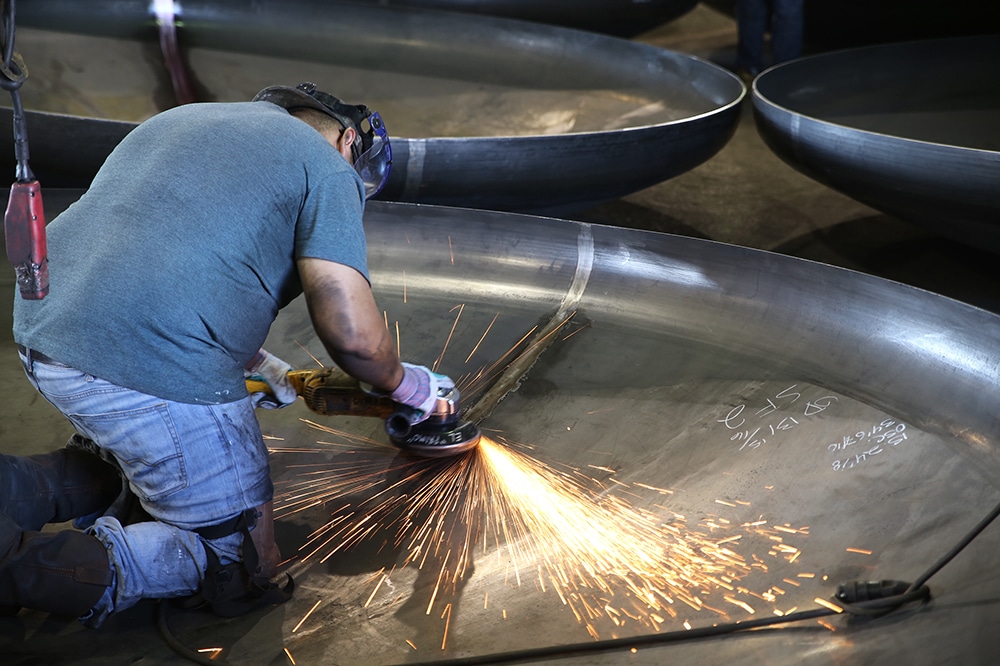

Worker Soldering Tank Head for Quality Control | Baker Tankhead
Request A Quote

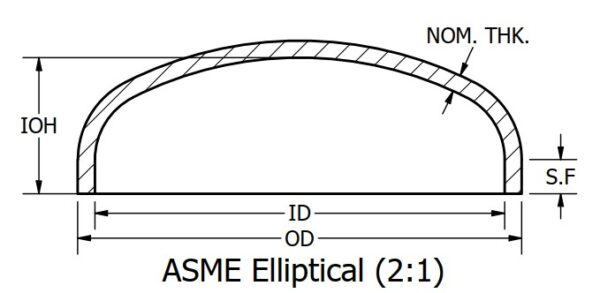

2:1 Semi-Elliptical Tank Heads

Sizes 6-5/8 to 192 inches in diameter. From 3/16 to 2 inches thick. Tolerances comply with ASME EG 32 (d). I.D. or O.D.

* Volume (US gal) V = .000586 D3
( D = ID in inches )

Drawing of tank head | Baker Tankhead

Flanged Only Tank Heads

Sizes 14 to 300 inches in diameter. From 12 gauge to 1-1/4 inches thick. Non-ASME I.D. or O.D.

Drawing of tank head | Baker Tankhead

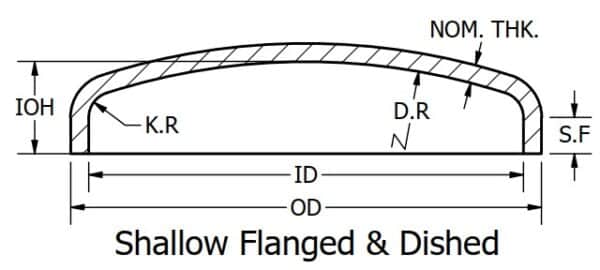

Flanges & Shallow Dished Tank Heads

From 14 to 260 inches in diameter. From 3/16 to 1-3/8 inches thick. Non-ASME I.D. or O.D.

Drawing of tank head | Baker Tankhead

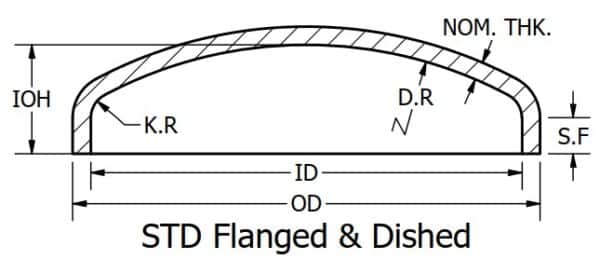

Standard Flanged & Dished Tank Heads

Sizes 14 to 260 inches in diameter. From 12 gauge to 1-3/8 inches thick. Non-ASME I.D. or O.D.

* Volume (US gal) V=.000263 D3
( D = ID in inches )

Drawing of tank head | Baker Tankhead

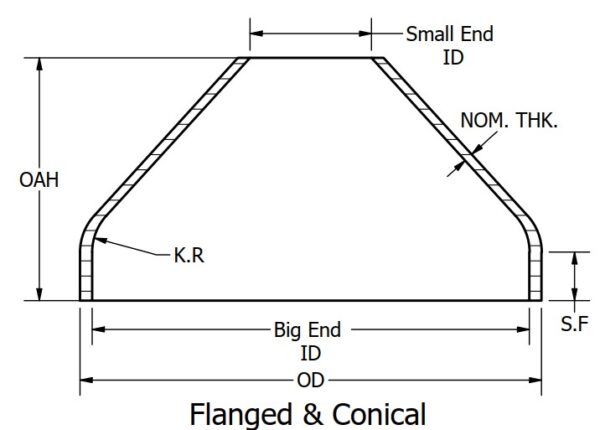

Flanged & Conical Dished Tank Head

From 24 to 240 inches in diameter. From 3/16 to 1-1/8 inches thick. Tolerances comply with ASME requirements. ASME UG-32 (h). I.D. or O.D.

Drawing of tank head | Baker Tankhead

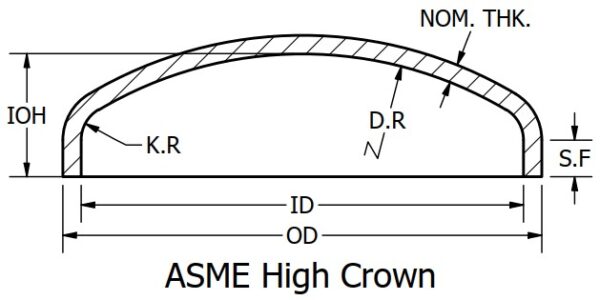

ASME High Crown Flanged & Dished Tank Heads

Standard and intermediate sizes between 14 to 248 inches in diameter. From 3/16 to 1-3/8 inches thick. Tolerances comply with ASME requirements. I.D. or O.D.

Drawing of tank head | Baker Tankhead

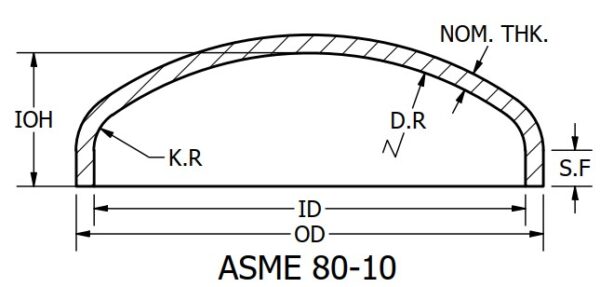

ASME 80-10 Flanged & Dished Tank Heads

Sizes 14 to 240 inches in diameter. From 3/16 to 1-3/8 inches thick. Tolerances comply with ASME 1-4 (d). I.D. or O.D.

* Volume (US gal) V=.000488 D3
( D = ID in inches. )

Drawing of tank head | Baker Tankhead

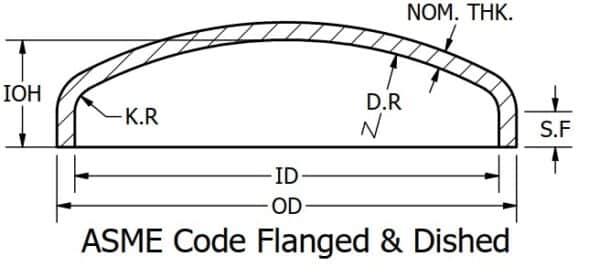

ASME Flanged & Dished Tank Heads

Standard and intermediate sizes 14 to 250 inches. From 3/16 to 1-3/8 inches thick. Tolerances comply with ASME requirements. ASME UG-32 (e) I.D. or O.D.

* Volume (US gal) V=.000346 D3
( D = ID in inches. )

Drawing of tank head | Baker Tankhead

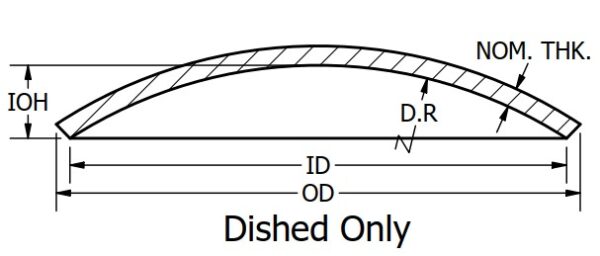

Dished Only Tank Heads

When ordering, specify most important dimensions- outer diameter, crown radius, or depth. Standard and intermediate sizes 12 to 275 inches in diameter can be readily supplies. From 12 gauge to 3 inches thick.

* Volume (US gal) V=.000233 D3
( D = ID in inches ) ( DR = ID )

Drawing of tank head | Baker Tankhead

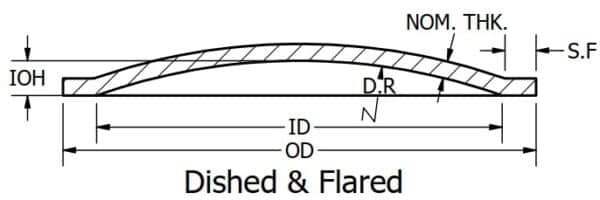

Flared & Dished Tank Heads

From 18 to 144 inches in diameter. From 12 gauge to 5/16 inches thick. Tolerances comply with ASME requirements. ASME 1-6.

* Volume (US gal) V=.000233 D3
( D = ID in inches ) ( DR = ID )

Drawing of tank head | Baker Tankhead
