Manufactured for Every Industry

Baker Tankhead manufactures both hot and cold formed tank heads to ASME code & standard shapes in carbon and stainless steel, as well as aluminum. We hold both S and U stamp ASME certifications, ensuring your project requirements are always met.



Please see our list below for more details on each tank head shape we offer!

​

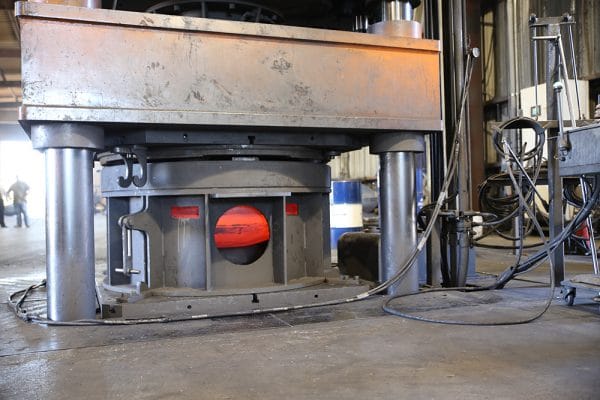

Hot Pressed Tank Heads

Features:

  • Diameter: 6 5/8 to 48 inches

  • Thickness: 5/16 to 2 1/2 inches

Cold Formed Tank Heads

Features:

  • Diameter: 14 to 316 inches

  • Thickness: 3/16 to 1 1/4 inches

Rolled Cylinders

Features:

  • Inside Diameters: 20 to 168 inches

  • Thicknesses: 3/16 to 2 inches

  • ​Length: Up to 10 feet

carbon steel cone asme industrial fabrication fort worth texas

Cones

Features:

  • Diameter: 4 1/2 to 192 inches

  • Height: Up to 10 feet with a girth seam

  • Thickness: 3/16 to ​1 1/4 inch

Specifics

ASME 2:1 Semi-Elliptical Tank Heads

Hot Pressed

​

  • Diameter: 6-5/8 to 48 inches

  • Thickness: 5/16 to 2 1/2 inches

Cold Formed

​

  • Diameter: 14 to 316 inches

  • Thickness: 3/16 to 1 1/4 inches

asme 2:1 semi-elliptical tank head
asme flanged and dished tank head

ASME Flanged & Dished Tank Heads

​

  • Diameter: 14 to 316 inches

  • Thickness: 3/16 to 1 1/4 inches

ASME 80-10 Flanged & Dished Tank Heads

​

  • Diameter: 14 to 240 inches

  • Thickness: 3/16 to 1 3/8 inches

  • 80% Dish Radius

  • 10% Knuckle Radius

asme 80-10 flanged and dished tank head
asme high crown flanged and dished tank head

ASME High Crown Flanged & Dished Tank Heads

​

  • Diameter: 14 to 248 inches

  • Thickness: 3/16 to 1 3/8 inches

  • 85% Dish Radius

  • 6% Knuckle Radius

ASME Flanged & Conical Dished Tank Heads

​

  • Diameter: 14 to 240 inches

  • Thickness: 10 Gauge to 1 1/8 inches

standard flanged and dished tank head
dished only tank head

Standard Flanged & Dished Tank Heads

​

  • Diameter: 14 to 260 inches

  • Thickness: 12 Gauge to 1 3/8 inches

  • Non-code I.D. or O.D.

Shallow Flanged & Dished Tank Heads

​

  • Diameter: 14 to 260 inches

  • Thickness: 3/16 to 1 3/8 inches

  • Non-code I.D. or O.D.

asme dished and flared tank head
flanged only tank head

Flanged Only Tank Heads

​

  • Diameter: 24 to 240 inches

  • Thickness: 10 Gauge to 1 1/4 inches

  • Non-code I.D. or O.D.

Dished Only Tank Heads

​

  • Diameter: 8 5/8 to 240 inches (300in in various thicknesses)

  • Thickness: 10 Gauge to 2 inches

asme flanged and conical dished tank head
shallow flanged ad dished tank head

ASME Dished & Flared Tank Heads

​

  • Diameter: 24 to 84 inches

  • Thickness: 10 Gauge to 3/8 inches

Baker Tankhead

Follow us on LinkedIn!

  • LinkedIn

© 2025 by Baker Tankhead, Inc.

817-232-8030

bakertankhead.com

10405 North Freeway

Fort Worth, TX 76177

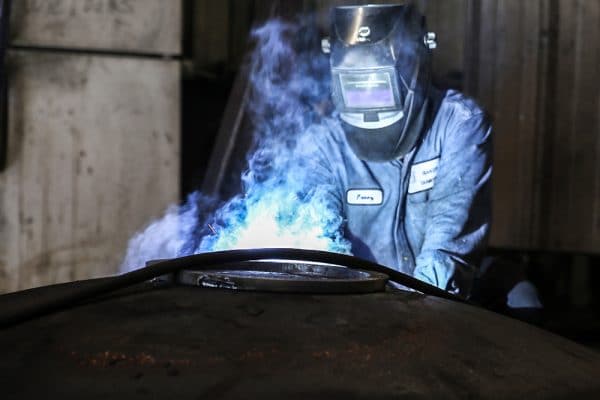

Skilled technician welding a carbon steel tank head
